KEY LEARNING POINTS
- With trust, and the goodwill of a community, it is possible to build homes without any borrowings
- Managing a large construction contract is not easy – it may be wise to appoint your own experienced hard-nosed project manager to act as a go-between
- It is risky to build homes without having occupiers already in place. ‘Later comers’ inevitably struggle to catch up and won’t always understand everything that has happened in the past – which can lead to misunderstandings
- If you are aiming to build low cost homes adjust the specification to match the budget. You won’t be able to afford ‘eco bling’, triple glazing and expensive finishes if you are striving to deliver genuinely low cost homes
- Plan for the worst-case scenario – for example it is not uncommon for building contractors to go bust mid way through a contract, or for them to fail to deliver exactly what you want. The ‘hiccup’ on this project took a long time to resolve
- Make sure you manage the group’s expectations and are very clear about what flexibility there is; and what can’t be adjusted
Over the last 40 years more than 100 individual homes have been built by the Findhorn Foundation as a new eco-village on site close to Forres in the North West of Scotland. In 2014 a community-owned development business, Duneland, completed the first phase of a major extension to the village, which provided 25 homes in a cohousing development. The second phase will provide six serviced building plots and a terrace of six low-cost ‘self finish’ homes. A third phase will provide eight low cost apartments.
THE COHOUSING DEVELOPMENT

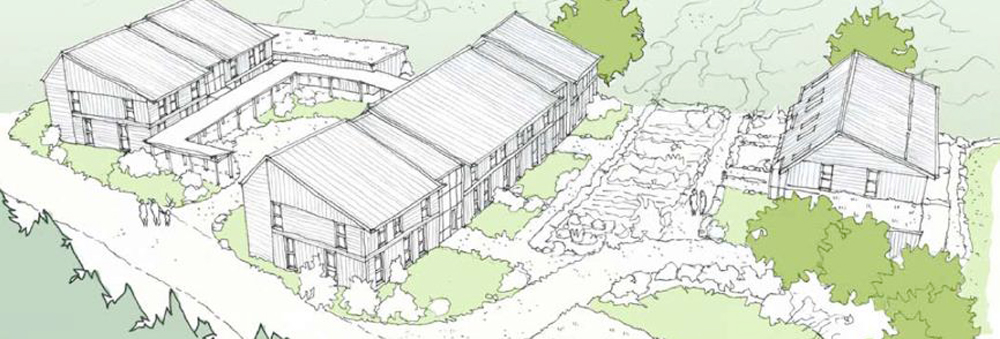

There are 25 homes in the cohousing element, arranged in three short terraces, with communal gardens between. Ten of the homes are two bed houses (90 sq m), three are three bed houses (105 sq m), six are two bed flats adapted for elderly living and there are six other two bed apartments (all 70 sq m).

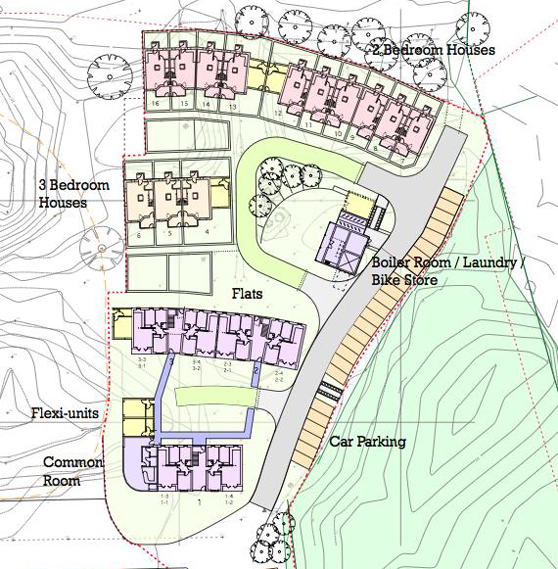

Layout of the 25-home cohousing development, showing the 31 parking spaces
In addition five ‘flexi spaces’ were provided (each of 25 sq m). These were envisaged as multi-purposes spaces that could be used as additional studio or home/work facilities, an office or a store. In reality these didn’t work and four of them have been incorporated into the houses to create an additional bedroom for the residents. There is also a 85 sq m common room and a communal laundry, workshop and bike store.

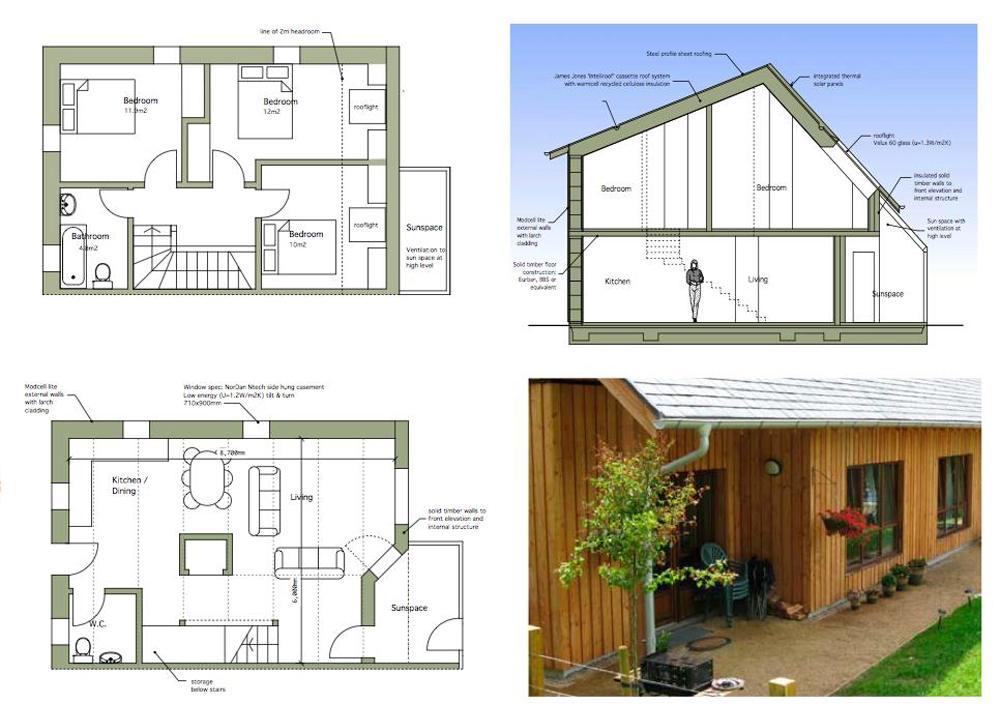

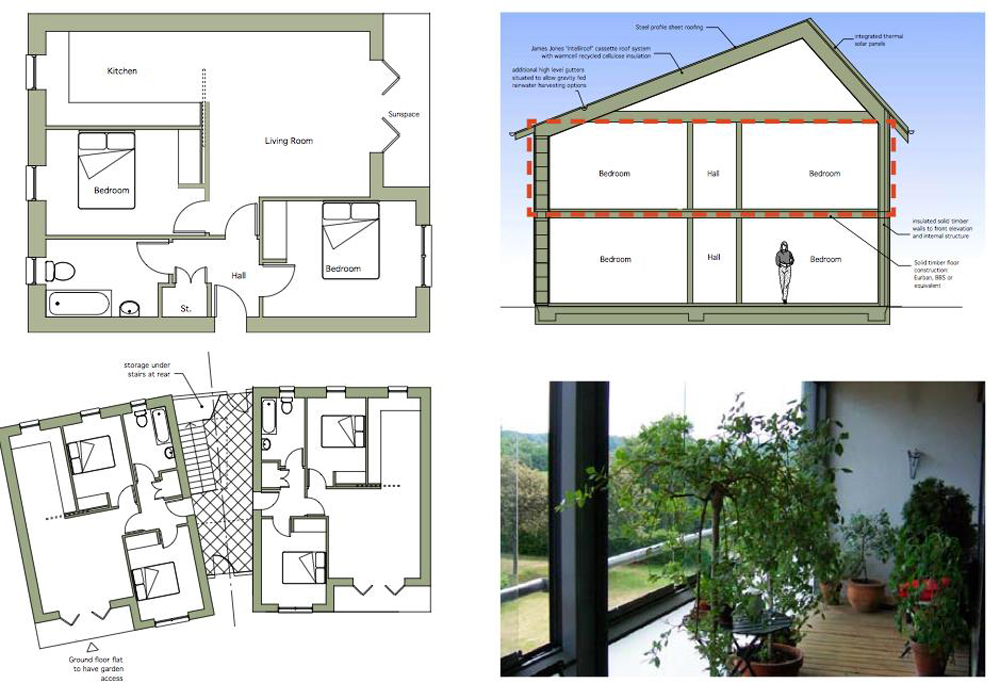

Typical three bedroom house layout Typical two bedroom house layout Typical two bedroom apartment layout
Thirty-one car parking spaces were provided – most of them set away from the houses (see the site plan).
The homes employ a timber frame construction using locally sourced timber. They are well insulated and are claimed to be close to Passive standard.
In the early stages of design the homes were planned using the ModCel straw bale system. This proved to be too expensive, so a well insulated timber framed construction method was adopted instead.
Originally it was hoped to employ a district heating CHP system to serve all the homes, but this also proved to be too costly; instead air source heat pumps have been individually supplied, along with a MVHR system. There have been operational issues with both systems.

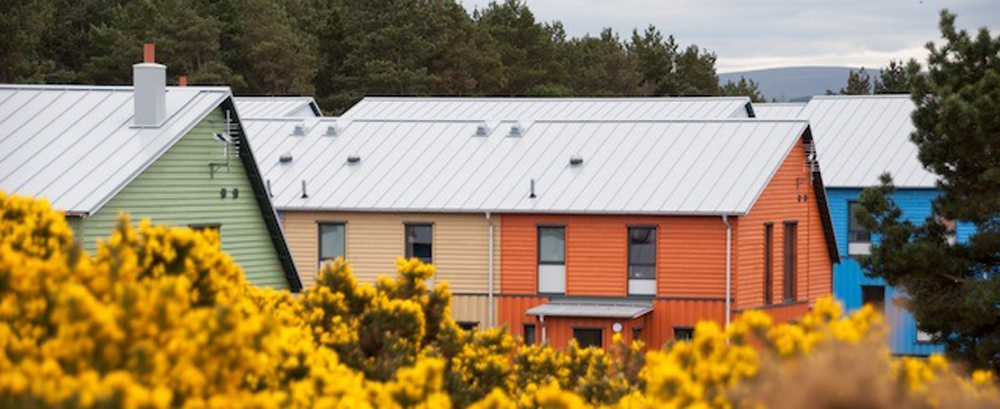

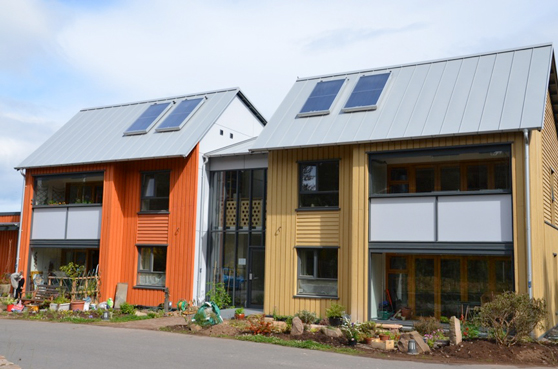

The asymmetric roof layout gives a contemporary look to the homes, and the use of colourful timber staining looks good.
A shared stairway/hall is used to provide access to the apartments. Sun spaces/gallery conservatories are also provided, though some of the residents haven’t used these as planned.
The cohousing project is a good example of cost effective collective custom building. It provides 25 attractive eco-homes, plus ten serviced building plots, and a terrace of six homes. A later phase will deliver eight affordable apartments.
Suburban and Rural
Low Cost and Intermediate
Individual and Collective
Detached, Terraced and Apartments
For the purposes of this Toolkit we have made the following definitions:
Click here to open/close

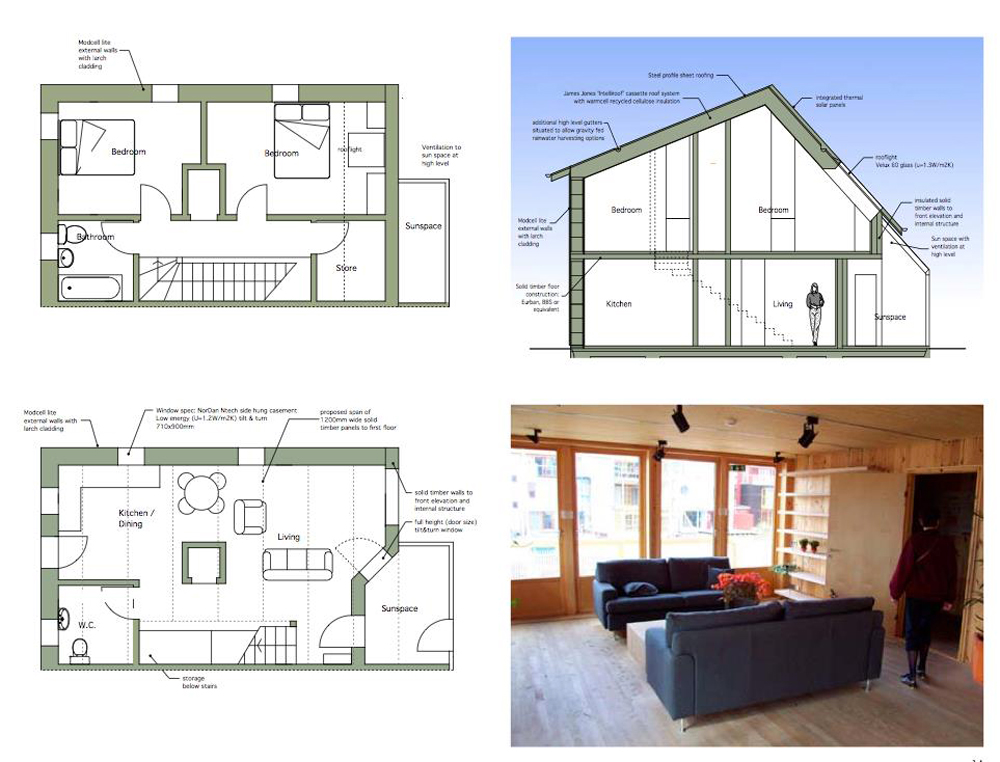

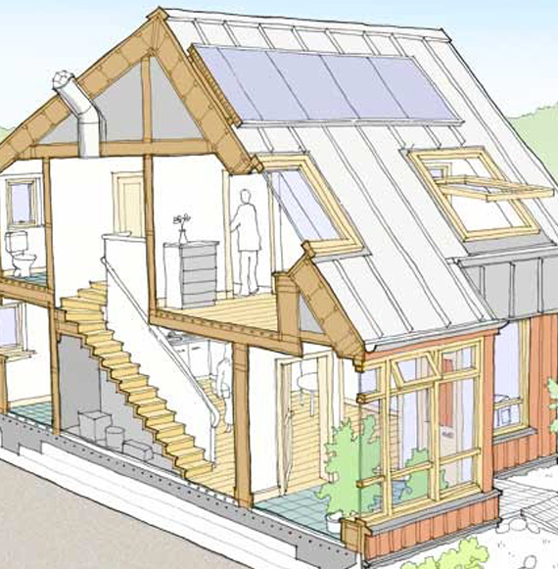

Architect’s drawing of a typical cross section through one of the homes Layout of the 25-home cohousing development
- ‘self and custom built homes’ as properties commissioned by people from a builder, contractor or package company (this is known as ‘custom build’ housing). When people physically build themselves, sometimes with help from sub-contractors, this is known as ‘self build’ housing. We call all these people ‘private homebuilders’.
- ‘serviced building plots’ are shovel-ready parcels of land with planning permission, laid out and ready for construction with access and utilities/services provided to the plot boundary. Some private homebuilders just purchase a plot; others opt for a ‘shell’ home (that they then finish off), or they select from an extensive menu of options offered by developers/builders.
- ‘group projects’ mean homes built by private homebuilders who work as a collective.
The project had a long gestation period, with people from the community initially meeting to discuss how land to the North of the existing village could be acquired and used back in 1996.
In 1997 Duneland (a social enterprise company with 69 shareholders from the existing village or nearby) bought 360 acres of land next to the original eco- village. Around 175 acres has been preserved as natural parkland (and opened up for public access), and 30 acres is now a managed woodland. Sixteen acres has been set aside for development – this portion of the site was effectively brownfield land, peppered with concrete pads and various industrial structures from when it was previously used by the RAF. The project covers about half of this area.
After much discussion among the shareholders plans were drawn up and in 2008 outline planning permission was granted for 40 homes on this section of the land. Detailed plans were then prepared in 2009 and full planning approved was achieved in May 2011.
Construction began in 2012 and the first homes were occupied in March 2014.
- 1996 People from the community initially meet to discuss how land to the North of the existing village could be acquired and used
- 1997 Duneland acquires land and zones it for park, woodland and development
- 2008 Outline planning received for 40 homes on brownfield section of the site
- 2009 Detailed plans prepared
- May 2011 Planning permission received
- 2012 Construction begins
- March 2014 Homes occupied
The 360 acres were acquired by Duneland from the Wilkie family. As it was largely a dune land area, covered in gorse, the cost per acre was very low.
The sensitive ecology of the land has been a key factor in the way it has been managed and is why only a relatively small area has been set aside for housing development.
The local authority was receptive to the proposals, though it took a full 18 months to approve the plans. The site sat within the existing settlement boundary, and the council recognised the positive impact the development would have on the area.
The council wanted some affordable housing as part of the development – something the team from Duneland was happy to provide, as it knew there was demand for homes to rent among the wider eco-community. In the end two homes for rent, and two shared equity properties were provided. The council worked with the Foundation to develop an allocations policy, and the rents are set using on the council’s normal social housing rent formula.
No formal demand assessment was undertaken – Findhorn is the sort of a place that lots of people visit, and it has a strong following from those keen to explore eco-solutions and alternative ways of living.
Many people expressed an interest in the opportunity presented by the acquisition of the land, and there were numerous meetings to discuss what might be possible. Those that invested in the purchase of the land were also offered first refusal on any plots that might be developed.
A core group came together under the Duneland banner to develop a brief for the cohousing development. About half the homes were ‘reserved’ for some of the original shareholders, and the remaining properties were effectively built speculatively by Duneland.
With hindsight the team behind the project feel this wasn’t the best solution, as many of the eventual occupiers had little say in the design of the development or the layout of their individual homes.
Once the project was underway further purchasers emerged and they acquired the remaining properties.
The mix of occupiers is not as diverse as the team originally expected – there are quite a number of single retirees. Purchasers were not allowed to buy to rent, and they could not be purchased and then rented out as a holiday home. Nonetheless one consortium of 13 households did buy one of the units and they share it (as an informal timeshare).
The homes were sold for between £160,000 (two bed flats) and £238,000 (three bedroom terraced houses). This cost also helped to cover the communal facilities that are provided which include a shared laundry, a common room, workshop, bike store and the gardens.
Marketing and Sales
The Duneland team did little serious marketing. Many of the enquiries for the unreserved units heard about them via word of mouth – the Foundation has a lot of followers and supporters and this resulted in a number of people coming forward to get involved.
Signs around the construction site also resulted in enquiries, and there was an occasional ‘sales office’ located in a caravan.
The team found it difficult when it came to handling the sales – on the one hand the team wanted to get occupiers lined up for the remaining units, but at the same time it wanted the right sort of people. This conflict of interest was sometimes difficult to resolve.

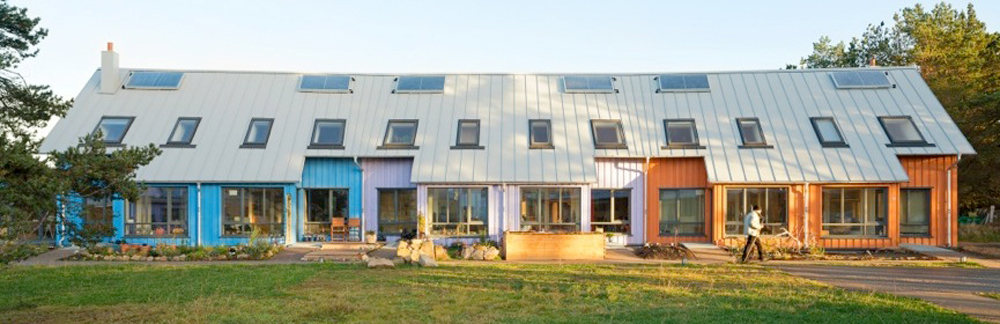

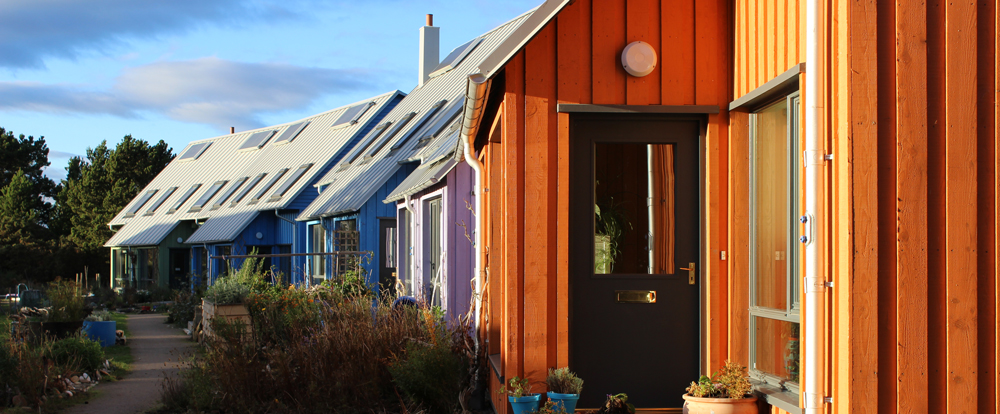

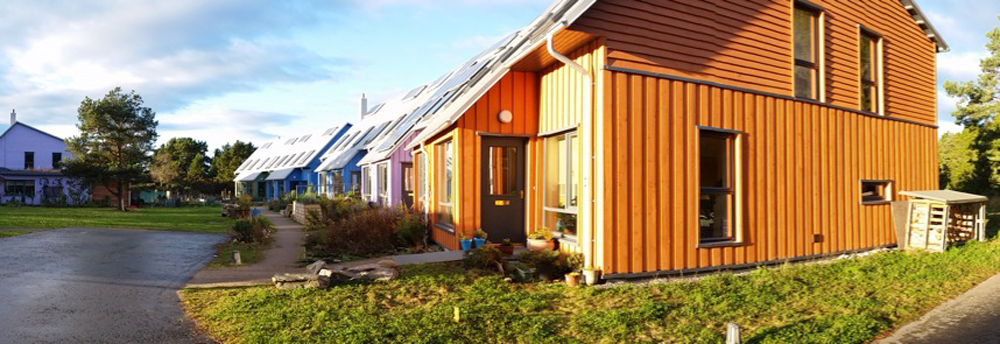

The homes are typically arranged in terraces
Duneland managed to fund the whole project without any formal bank borrowings.
It achieved this because some of those involved had significant personal financial resources, and they were wiling to informally lend between the members of the group to secure the cash to pay the building contractor and others. The goodwill and trust that develops in a cohousing initiative makes this possible – and its something that regularly happens.
So, in practice, several of the occupiers paid all the cost of their homes up front, or put down very large deposits. And some of the shareholders in Duneland also provided informal loans. This informal financial structure also raided the money to pay for the four affordable homes, that are now rented out at social rent levels.
The local planning authority was broadly supportive of the development as it recognises Findhorn is an important tourist attraction that generates a lot of business/economic activity for this remote part of Scotland. The area identified for housing was brownfield land and lay within the local settlement boundary. The only unusual feature was that the Duneland team opted to provide one and a half parking spaces per home (rather than the local standard of two), arguing that its existing car sharing scheme meant that fewer spaces would be required.

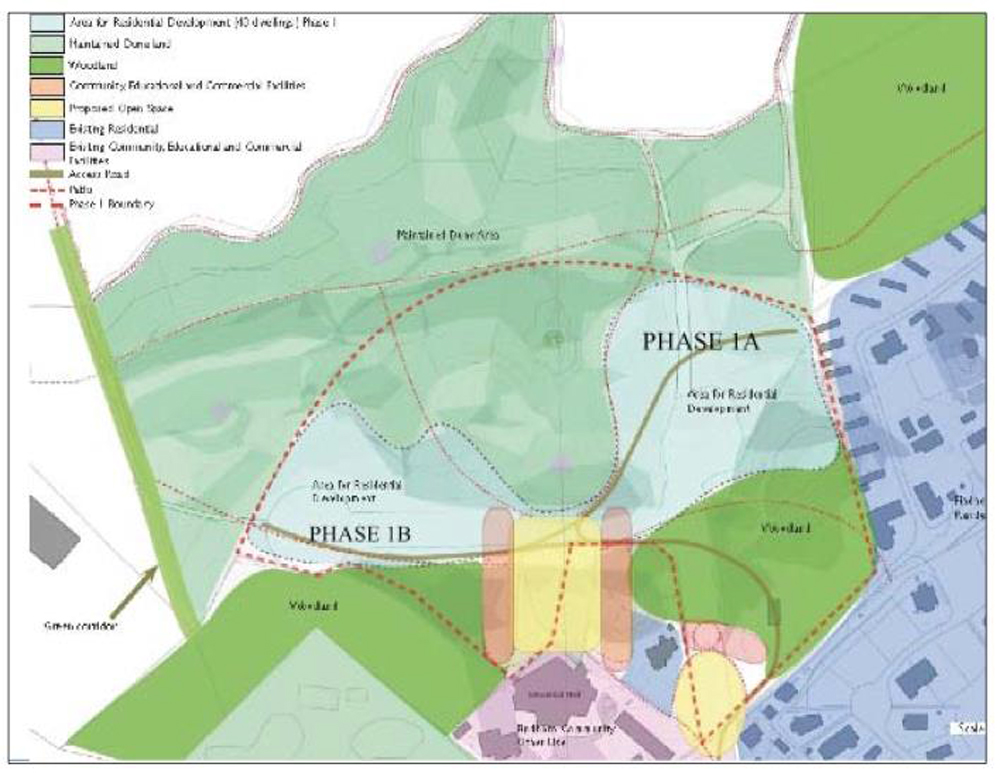

Zoning plan showing areas reserved for residential development, woodland and marshes
Some of the homes were designed to have an adjoining workspace, to facilitate home working. In reality almost all of these have been incorporated into the adjoining homes – to provide an additional bedroom or general living accommodation.
Ownership and legal issues
The occupiers all own the freehold title of their individual homes. A residents association has been formed that manages the shared spaces, and takes responsibility for the surrounding landscaped areas.
People and procurement
The majority are occupiers have had a long association with, and understand the ethos that surrounds Findhorn. But some of the purchasers of the speculatively built properties had less of an understanding of the set-up.
Consequently some of the ‘late arrivals’ wanted to make changes to the layouts and adjust the specifications of their homes (even though they were already on site) and this caused some challenges.
On group projects clear communication is essential
Good, consistent communication is vital to ensure everyone understands the process

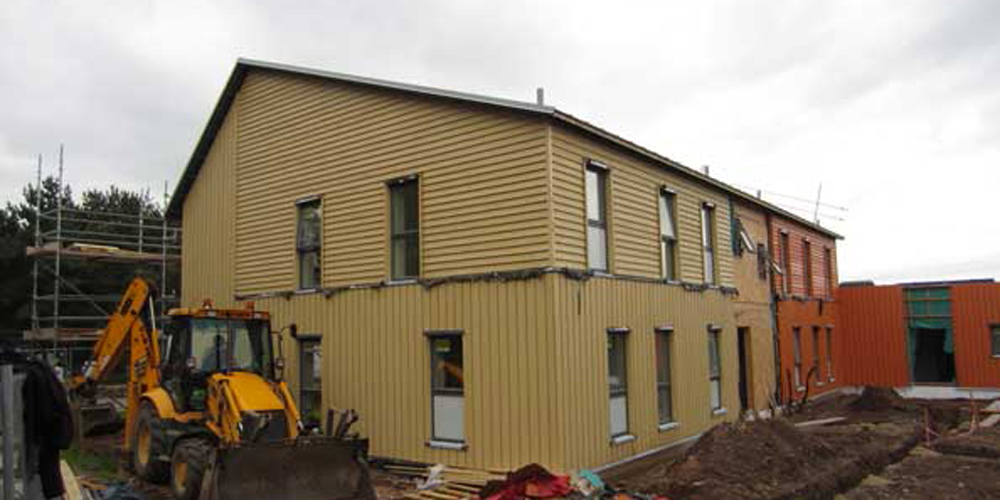

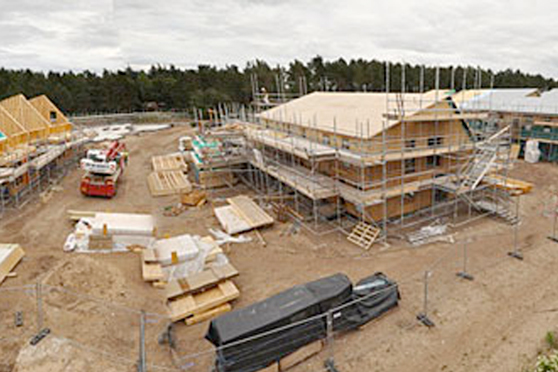

The main construction work was procured from a Scottish timber framing company. Part way through the work this company was bought by another contractor, and this led to many problems, as the new owner seemed less interested in finishing the work to the standard everyone had anticipated.
Indeed, it is claimed that the contractor walked off the project before all the work was completed and there is now an ongoing dispute with them.
With hindsight the Duneland team believe it should have recruited its own hard-nosed construction expert to project manage the contractor.

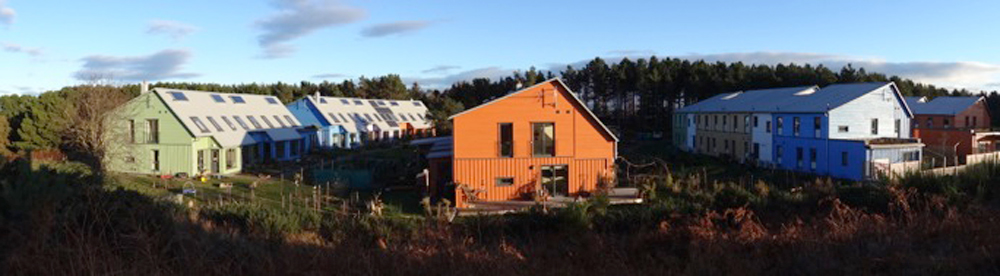

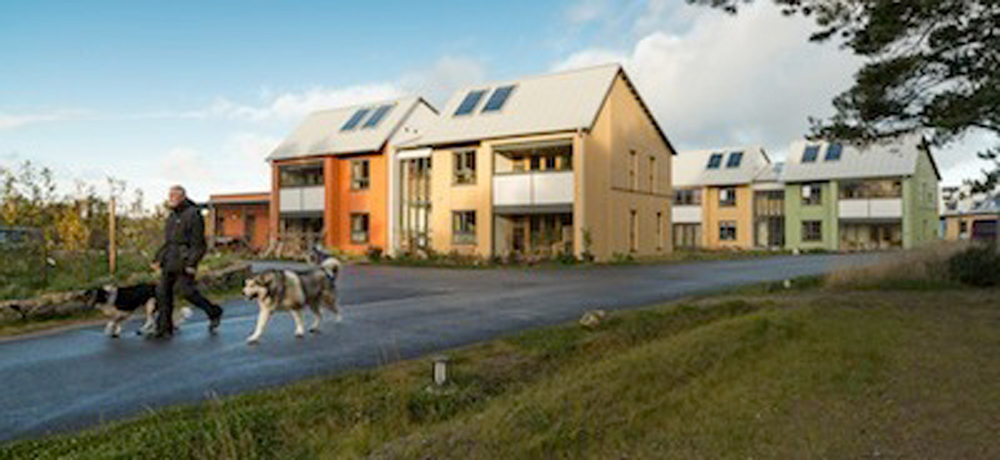

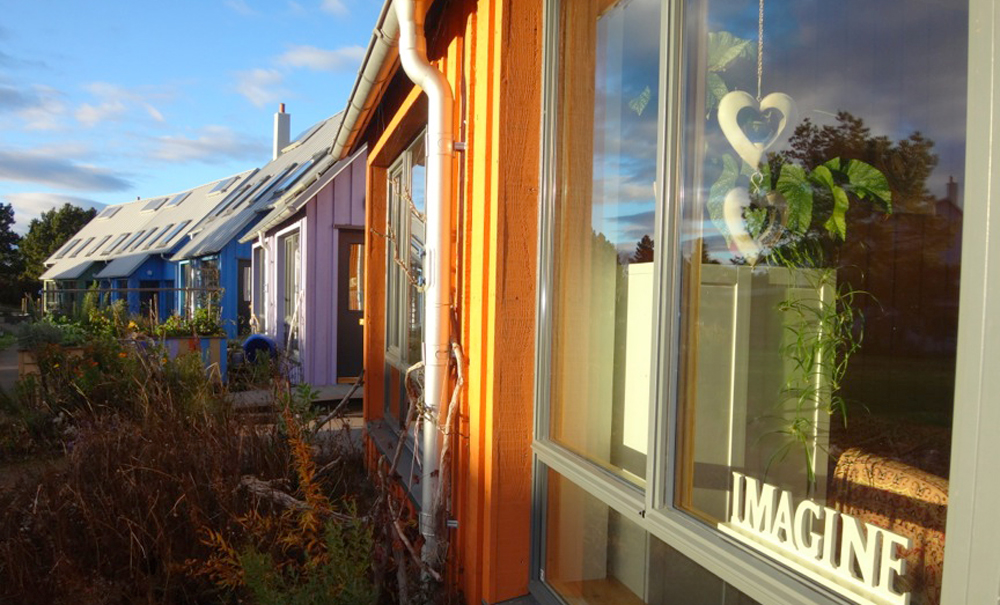

A view of the homes across the parkland The homes in their curving terrace arrangement View towards the smaller rented units on the southern edge of the site The homes are simply but effectively detailed Four of the two bedroom apartments, showing the shared hall/staircase. Note the sunspaces/balconies The air source heat pumps have not been a terrific success The terraced homes are laid out to optimise the use of passive solar energy
THE SELF-BUILD PLOTS
Currently there are plans for ten self build plots, arranged to the west of the cohousing development – in an area called West Whins.

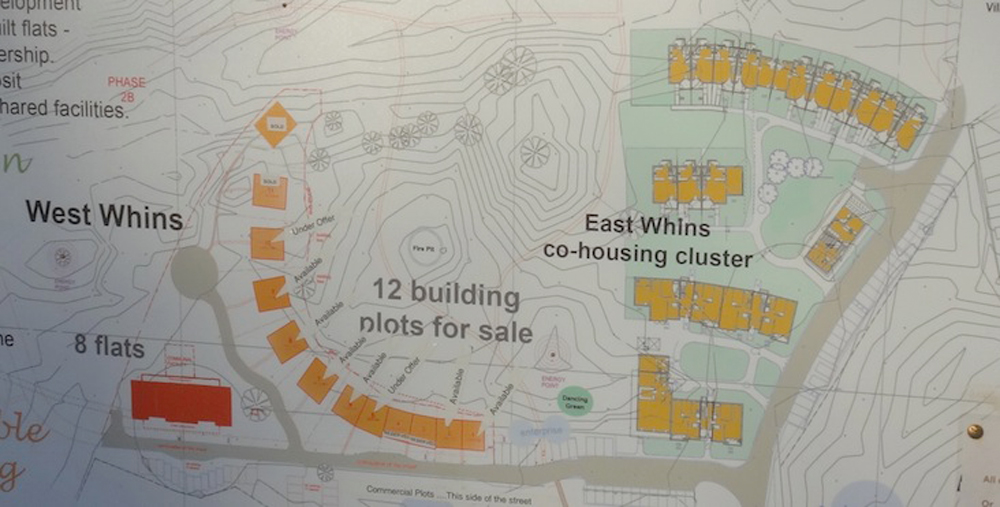

This plan shows an early layout of 12 self-build plots to the west of the cohousing development
It can take time to get new low energy systems to work as expected

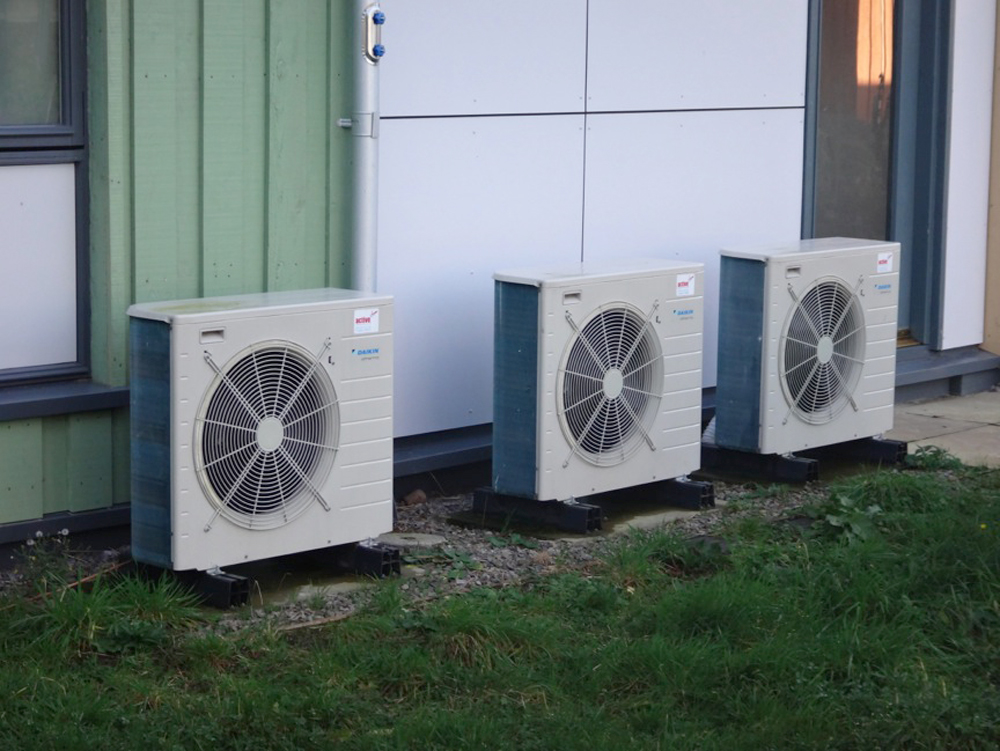

Air source heat pumps and MVHR systems are difficult for many people to understand and operate effectively

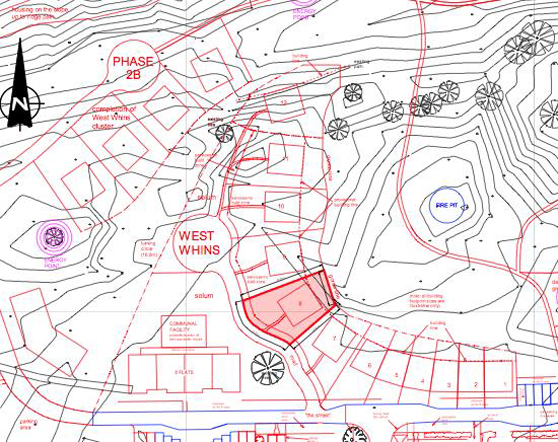

This plan shows the current proposals with six detached plots (one of which is highlighted) next to six other plots that will be procured as a terrace (see later in this case study), and four further plots in ‘Phase 2B’ in the top left corner of the plan The location of the self-build plots with early servicing already installed
By the summer of 2015 three of the six initial building plots had been sold. The plots range from 120 sq m to 400sq m, but most are around a 300 sq m and are capable of accommodating a two-storey home of between 150 and 200 sq m.
Plots are being advertised at between £55,000 and £105,000. There are some design restrictions on the homes to ensure they tie in with the look of the other homes in the area. These include a height limit and a maximum footprint size for each plot. Natural materials are encouraged along with renewable energy systems, and the properties have to meet minimum energy standards.
Purchasers are also given a four years to build the homes (with penalties for non-completion). If sold at a later date two per cent of the sale value is donated to a fund to provide further affordable housing in the area.
Some design restrictions have been imposed – for example there is a limit on eaves heights, and the self builders are asked to design their homes to tie in with the look of the other nearby properties. The Duneland team also has the right to see (and approve) the designs before construction, and, as part of the process, there is also an opportunity for the wider Findhorn community to comment on the design.
The local authority itself has not developed a Design Code, and will just treat every planning application in the normal way.
There are also plots identified for a conference space or pub/restaurant, and three areas set aside for workshops or other community businesses.
THE TERRACE OF SIX LOW-COST HOMES
These homes are planned as part of the self-build plots area, and are arranged as a sweeping terrace that joins up with the individual plots.
The six homes are a mixture of two and three bedroom properties, with the two central ones being a storey height taller. They are generally arranged with bedrooms on the lower levels and the main living space covering the whole of the first floor.
Terraced homes are cost effective
By building six homes in a terrace (in one contract) cost savings of about 20 per cent are possible – compared to building six detached properties
Site board advertising the project. The plan in the centre identifies the location of the terrace, which is marked in red Ground floor plans –the homes have the main living space at first floor
A local contractor (Green Leaf Design & Build) is planning to build all the homes in one go. By the early summer of 2015 five had been pre-sold, and construction was expected to begin in a matter of weeks. They should be finished early in 2016.
The homes employ a simple timber frame and are going to be built to a reasonable specification. A plastic coated steel roofing system is proposed, with solar thermal panels and a solid fuel boiler (or ASHP). The owners can be provided with a ‘shell’ finish that they can then complete themselves, or the contractor can do everything for them.
Architect’s drawings of the terraced homes – a typical two bed home is being marketed at £74,000
In addition to this cost purchasers also have to contribute to the planning application costs, structural and SAP fee, building warranty and tender documentation costs – a total of around £3,500 per home.
Purchasers will be asked to pay in six stages – when foundations go in, at first fix of the timber frame, when the homes are wind and watertight, when the external finishes are complete, when the internal work is finished and at final completion.
There are also early plans for a block of eight smaller apartments nearby (five of which will be affordable). But more fund raising will be required before this can progress, so it is unlikely to be on site before 2017.
